Oracle RMAN Is the 'Tax Man'

Bob Ganley, Senior Solutions Consultant | 3/23/2012 | 12 comments

Bob Ganley
A few blogs back, I asserted that many organizations are paying “taxes” that they shouldn’t have to pay. These taxes are in the form of extra costs from overprovisioning servers just so that performance doesn’t become unacceptable during data protection operations. Databases underpin most business-critical systems out there, so they are a great place to show this. I discussed some specific SQL Server examples. This is not just a Microsoft problem; let’s take a look at Oracle.

The standard utility for performing database backup, restore, and recovery of Oracle databases is RMAN. Here are some results quantifying the impact of RMAN in an Oracle database environment. This is for a 2-Node Oracle 11g R2 RAC cluster running a TPC-C style transactional workload.

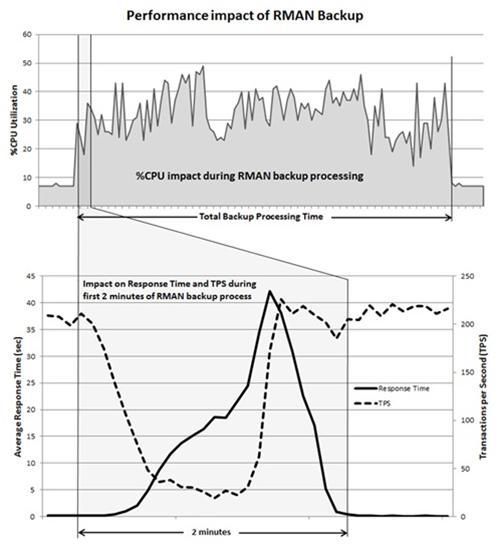

There are a couple of key points to note:

  • Even though this was a lightly loaded system, CPU Utilization increased 30 percent to 40 percent for the entire duration of the backup.
  • Response time and transactional performance see a negative spike for the first couple of minutes of the backup window.

Conclusion: You have to pay the “tax man” for Oracle when you use RMAN on your Oracle host.

For more info on this testing, see: http://dell.to/xAsNCa.

Now it is time to hear from you. What is your experience with SLA taxes?

View Comments: Newest First | Oldest First | Threaded View
Page 1 / 2   >   >>
batye   Oracle RMAN Is the 'Tax Man'   9/5/2012 11:58:07 AM
RE: Oracle RMAN Is the 'Tax Man'
yes, thanks Bob good solution... in this life we have two sure things death and taxes...
singlemud   Oracle RMAN Is the 'Tax Man'   4/24/2012 4:25:02 PM
RE: Oracle RMAN Is the 'Tax Man'
@Bob, thanks a lot for pointing out the solutions.
Bob Ganley   Oracle RMAN Is the 'Tax Man'   4/24/2012 4:13:22 PM
RE: Oracle RMAN Is the 'Tax Man'
Thanks for the comment @singlemud . It is funny... I used to work for JavaSoft selling commercial licenses for the use of Java technology. And yes Java has been blamed for bogging down many-a-system.

In this case everything is performing as expected. The problem arises when the CPU cycles demanded by the Backup process are added to the CPU cycles needed by the production Database process. In order to have a single system that can run both jobs with acceptable latency, that system must be sized to be able to run both jobs simultaneously. That means seriously over-sizing the system when compared to the size of a system that would be needed to only run the production Database workload.

The solution is to offload backup processing to a dedicated backup server.
User Ranking: Blogger
singlemud   Oracle RMAN Is the 'Tax Man'   4/24/2012 1:17:46 PM
RE: Oracle RMAN Is the 'Tax Man'
very interesting, my guess: it is due to the poor java performance?
Bob Ganley   Oracle RMAN Is the 'Tax Man'   3/28/2012 8:04:13 AM
Re: Quite Accurate,Bob!
Thanks for the comment @Tekedge . It is good to hear other data points. Interesting how that 40% range keeps showing up!
User Ranking: Blogger
tekedge   Oracle RMAN Is the 'Tax Man'   3/27/2012 10:17:48 PM
Re: Quite Accurate,Bob!
I work on IBM DB2 on distributed systems(Unix/iseries/Windows) and I can tell you that the 'taxman' always shows up. Eventhough my backups are done in a quiesce mode and offline with no users connected,the cpu is almost certainly at 35-40% during the entire length of the backup.
Bob Ganley   Oracle RMAN Is the 'Tax Man'   3/26/2012 11:49:53 AM
Re: Quite Accurate,Bob!
But do you see this problem restricted only to Oracle and SQL server? What about the smaller players like MySQL ,PostGreSQL and of course IBM's DB2???

@eethtworkz I don't have data for the other databases mentioned in your question. However I can say this with certainty - The data protection process takes resources. The question becomes where do you allocate those resources - in your production servers or your storage.
User Ranking: Blogger
Bob Ganley   Oracle RMAN Is the 'Tax Man'   3/26/2012 11:43:20 AM
Re: A Question from your Chat session
"But what happens if De-Duping and De-Compressing are part of the enterprise Policy???[Have to be done whether we like it or not].

Is there any way to avoid such a massive hit on Performance then?"

@eethworkz - The benefits of block-based auto-tiering will accrue to any data stored. I don't know the type of deduplication and compression technologies or the impact on performance in your case, but I'm going to hazard a guess that auto-tiering could mitigate some of that impact.

Data reduction techniques are more often used for archive files and backups. File-based storage (even primary) is another place that this is becoming more common.

Blanket application of a "deduplicate and compress" policy to primary storage for performance-sensitive databases may be counter-productive. The amount of $ saved in storage cost may not cover the costs of mitigating performance impacts over time.
User Ranking: Blogger
eethtworkz   Oracle RMAN Is the 'Tax Man'   3/26/2012 10:56:59 AM
A Question from your Chat session
Bob,

This is a question from the Chat Session we had last week

http://www.enterpriseefficiency.com/radio.asp?doc_id=239633

You mentioned something along these lines,

"

what I meant is that if you've got a performance-sensitive workload to the point where you are auto-tiering hot data to SSD, you aren't going to want to incur additional overhead of de-duping and de-compressing data

"

But what happens if De-Duping and De-Compressing are part of the enterprise Policy???[Have to be done whether we like it or not].

Is there any way to avoid such a massive hit on Performance then?

Thanks again!

Ashish.

eethtworkz   Oracle RMAN Is the 'Tax Man'   3/26/2012 10:53:35 AM
Quite Accurate,Bob!
Bob,

Thanks for putting it in such an easily understood graphical format.

Yes,its true and it is the current way how things work in the Database Space.

But do you see this problem restricted only to Oracle and SQL server? What about the smaller players like MySQL ,PostGreSQL and of course IBM's DB2???

Do they also face this problem to the same degree as the Big Two?

Thanks for sharing your massive experience with us here Bob.

Regards

Ashish.
